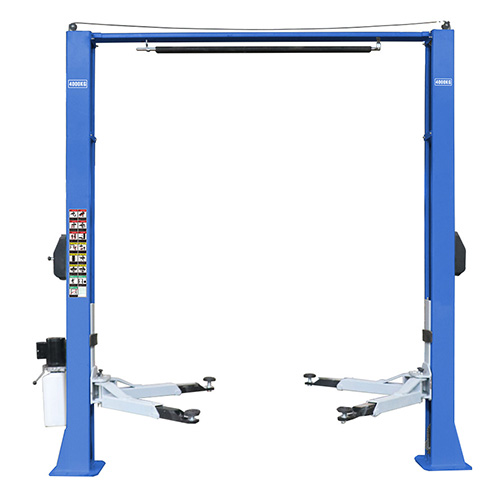

Product Model: CP-3140S
Product Feature:
♦ Baseless lift, allows easy access into the working area.
♦ Single-point mechanical lock release
♦ Two-stage elbow type arms and two-stage straight arms provide asymmetric lifting of vans and off-road vehicles.
♦ Arms suitable for quick drop-in extensions and other lifting accessories.
♦ Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor
♦ Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture.
♦ Self-controlled lowering speed
♦ Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position
♦ Overhead safety cut off
♦ Rubber door guards protect vehicle from door damage
Product Specification:
|
Lifting Capacity |
4000kg |
|
Min. Height |
110mm |
|

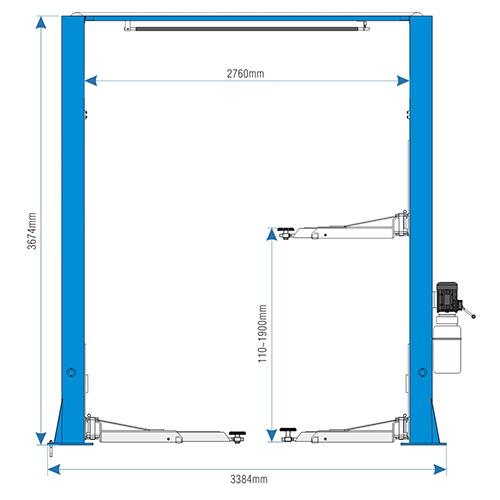

Max. Lifting Height |
1900mm |
|
Overall Height |
3674mm |
|
Overall Width |
3384mm |
|
Width between Posts |
2760mm |
|

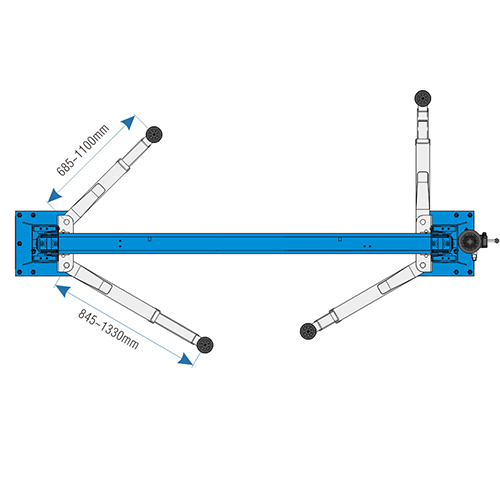

Short Arm Length |
685mm~1100mm |
|
Long Arm Length |
845mm~1330mm |
|
Lifting/Lowering Time |
55 Sec./45Sec. |
|
Motor Power |
2.2 kW |
|
Power Supply |
380V/50Hz/3Ph, 220V/50Hz/1Ph |
