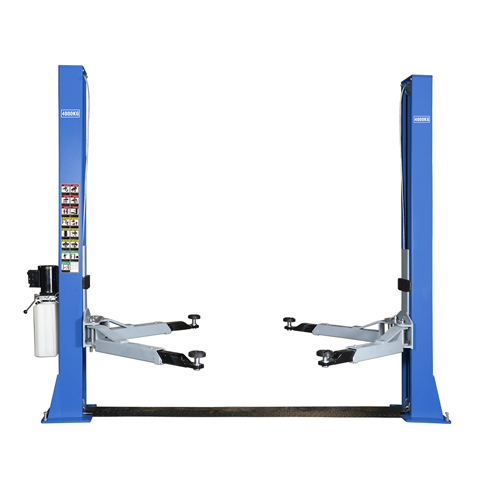

Product Model: CP-2140
Product Feature:
♦ Dual-point mechanical lock release
♦ Two-stage elbow short arms and two-stage long arms provide asymmetric lifting of vans and off-road vehicles.
♦ Arms suitable for quick drop-in extensions and other lifting accessories
♦ Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor
♦ Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture
♦ Self-controlled lowering speed
♦ Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position
♦ Rubber door guards protect vehicle from door damage

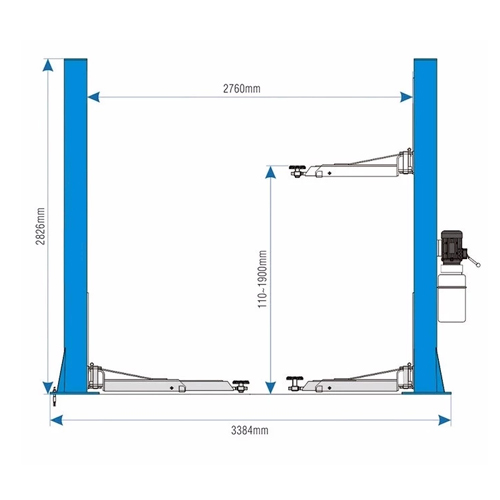

Product Specification:
|
Lifting Capacity |
4000kg |
|
Min. Height |
110mm |
|
Max. Lifting Height |
1900mm |
|
Overall Height |
2826mm |
|
Overall Width |
3384mm |
|
Width between Posts |
2760mm |
|
Short Arm Length |
685mm~1100mm |
|
Long Arm Length |
845mm~1330mm |
|
Lifting/Lowering Time |
55 Sec./35 Sec. |
|
Motor Power |
2.2kW |
|
Power Supply |
380V/50HZ/3Ph 220V/50HZ/1Ph |
