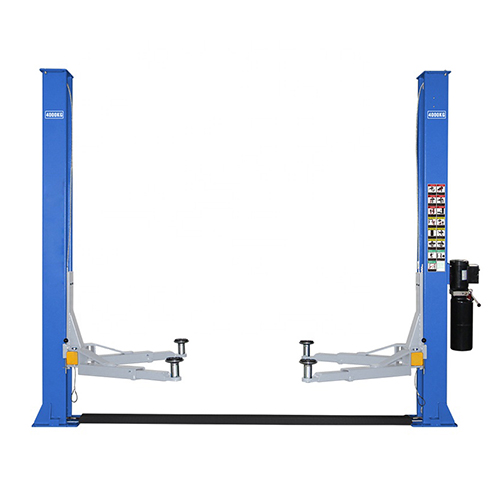

Model: CP-2040 two post lift
4000kg Capacity | Dual point manual lock release
Product Feature:
♦ Dual-point mechanical lock release.
♦ Two-stage elbow short arms and two-stage long arms provide asymmetric lifting of vans and off-road vehicles.
♦ Arms suitable for quick drop-in extensions and other lifting accessories.
♦ Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor.
♦ Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture.
♦ Self-controlled lowering speed.
♦ Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position.
♦ Rubber door guards protect vehicle from door damage.

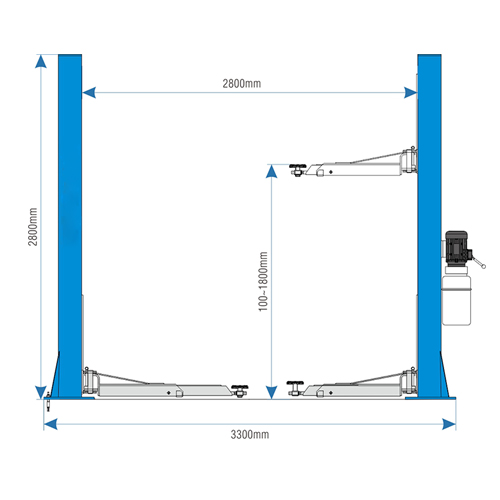

Specification:
Lifting Capacity
4000kg
Min. Height
110mm
Max. Lifting Height
1800mm
Overall Height
2800mm
Overall Width
3300mm
Width between Posts
2800mm

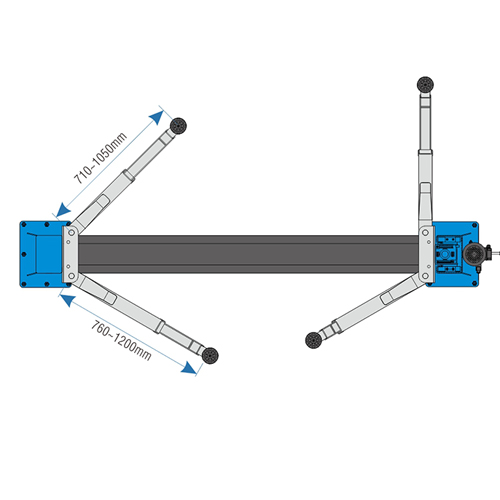

Short Arm Length
710mm~1050mm
Long Arm Length
760mm~1200mm
Lifting/Lowering Time
55 Sec./35 Sec.
Motor Power
2.2kW
Power Supply
380V/50HZ/3Ph
220V/50HZ/1Ph
