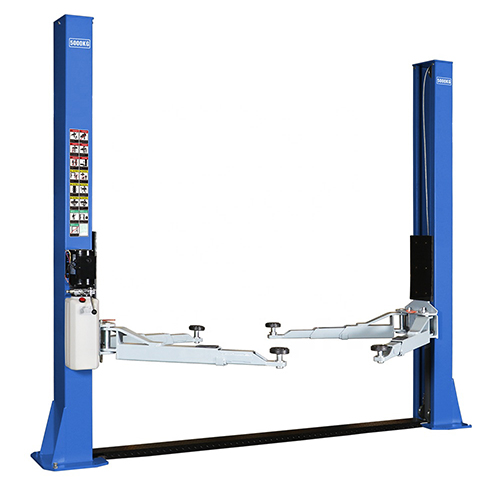

Product Model: CP-2150
Product Feature:
♦ Dual-point mechanical lock release.
♦ Two-stage elbow short arms and two-stage long arms provide asymmetric lifting of vans and off-road vehicles.
♦ Arms suitable for quick drop-in extensions and other lifting accessories.
♦ Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor.
♦ Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture.
♦ Self-controlled lowering speed.
♦ Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position.
♦ Rubber door guards protect vehicle from door damage.
Product Specification:

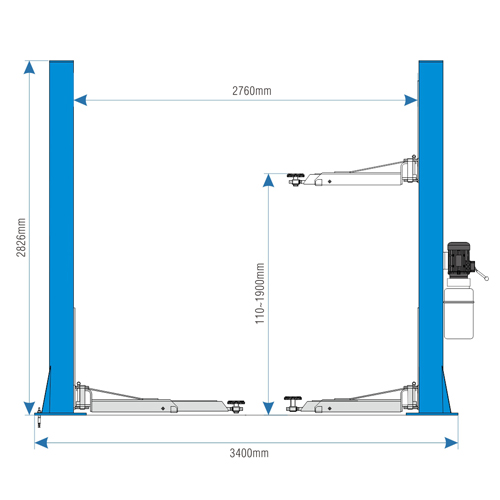

Lifting Capacity
5000kg
Min. Height
110mm
Max. Lifting Height
1900mm
Overall Height
2826mm
Overall Width
3400mm
Width between Posts
2760mm

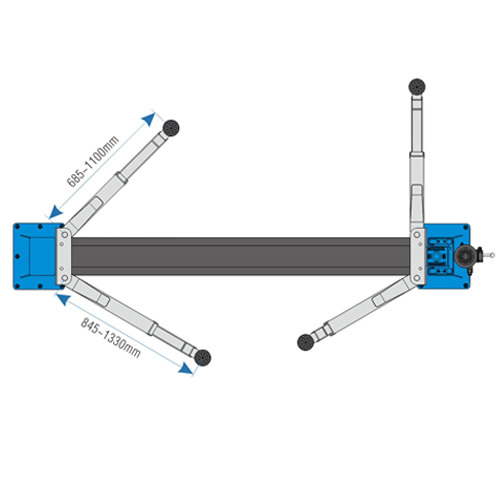

Short Arm Length
685mm~1100mm
Long Arm Length
845mm~1330mm
Lifting/Lowering Time
55 Sec./45 Sec.
Motor Power
2.2 kW
Power Supply
380V/50Hz/3Ph, 220V/50Hz/1Ph
