Automotive spray booth

  • Car spray booth model: CP-100
  • Car spray booth model: CP-100
  • Car spray booth model: CP-100
Car spray booth model: CP-100Car spray booth model: CP-100Car spray booth model: CP-100

Car spray booth model: CP-100

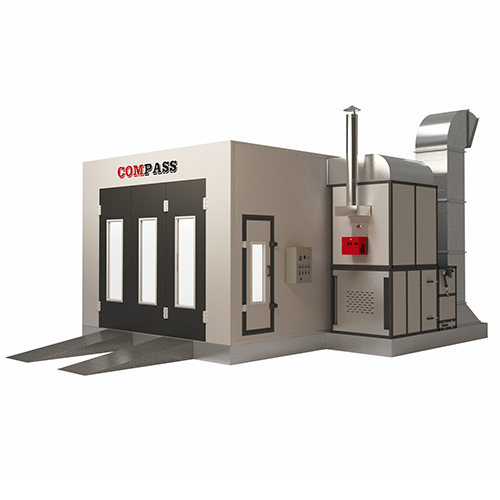

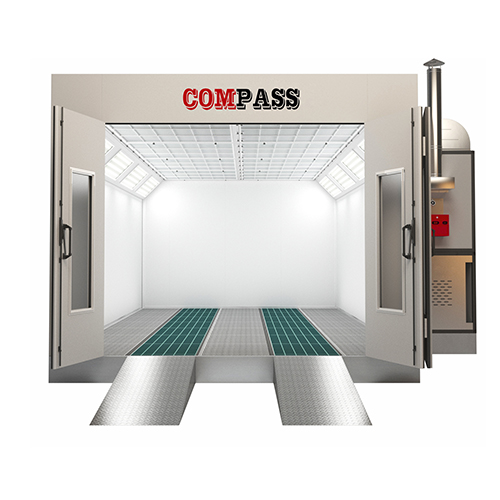

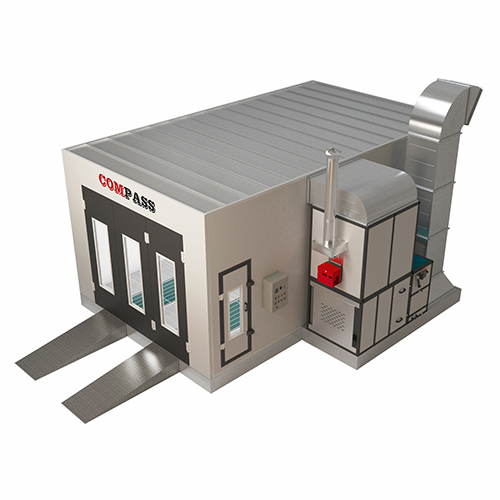

  • Description: The model CP-100 is one practical,economical, small power and low energy consumtion car spray booth, with the dimension of 7meter long 4m width and 2.65m higher.

Model No: CP-100 car spray booth

Production delivery time:7-10 days

Quality warranty time: 12months since customer receive the goods.

Product Feature:

1. Economical and practical

2. Small power and low energy consumption


Chamber Outside Dimension (mm):7005250×3400(L*W*H)

Chamber Inside dimension(mm): 6900*3900*2650(L*W*H)

Front door sizemm: 3000*2600(W*H)

Service door size(mm): 2000*800(W*H)

Cabin system:

1. Front door: 3 folded sheet metal formed door

2. Wall panels: 50mm EPS sandwich panel, steel sheet thickness: 0.426mm

3. Ceiling panel: Galvanized steel sheet

4. Basement: 300mm depth construction galvanized basement, two rows galvanized grids and three rows checkered plates.

5. Glass: 5mm tempered glass

Air make-up system

1. Air inlet fan systemOne set direct drive 5.5KW turbo fan

2. Exhausted fan systemfor option

3. Air inlet capacity:22000m3/h

4. Exhausted ducting: Four meters straight ducting for exhausted

Purification system

1. Pre filter : G3 grade

2. Ceiling filter: 600G filter EU5 / F5

3. Floor filter: Fiberglass filter

Heating system:

1. Heat Ex-changer: SUS 304 180KW stainless heating ex-changer

2. Heating burner: Riello G20 diesel oil burner

3. heating productivity: 200000Kcal/h

4. Spray to baking switch: Pneumatic damper

5. Chimney ducting: 4m straight chimney and one chimney hood

6. Maximum temperature: Maximum 80℃

Lighting system:

1. Ceiling lighting: 10Units, each 4 *16.5W LED lamps.

2. Side lights: for option

3. Illumination: 1000LUX

Controlling system:

Spraying & baking switch, lighting switch, timer , temperature controlling switch, emergency stop, breakdown alarm, failure alarm, pressure gauge

Total Power:  6.5KW

Electrical Voltage360-415V,3Phase, 50Hz/200-240V 60Hz, 3Phase
