Automotive spray booth

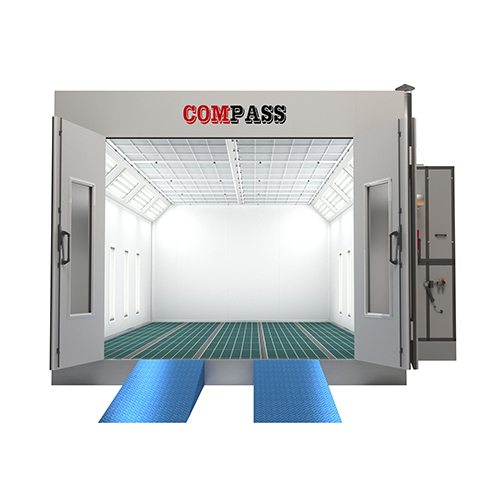

  • Car spray booth model: CP-300

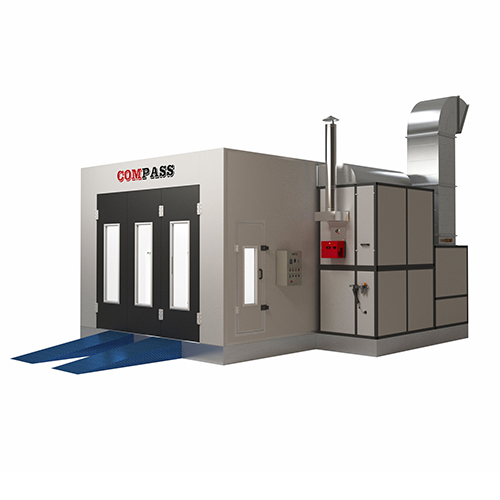

  • Car spray booth model: CP-300

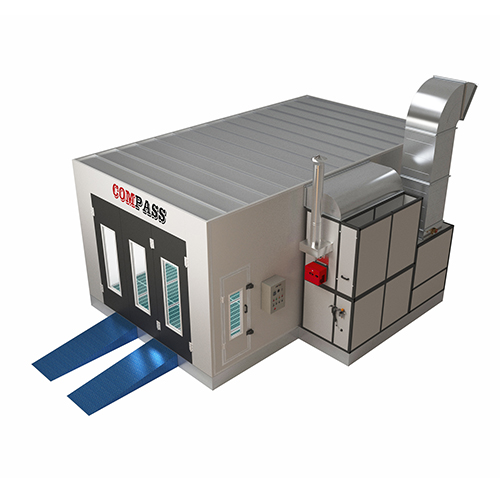

  • Car spray booth model: CP-300
Car spray booth model: CP-300Car spray booth model: CP-300Car spray booth model: CP-300

Car spray booth model: CP-300

  • Description: The model CP-300 is one set good working function, it's a high standard quality spray booth, with full grids basement, up and side lights etc.
  • INQUIRY   EMAIL

Model No: CP-300 car spray booth

Production delivery time:7-10 days

Quality warranty time: 12months since customer receive the goods.

Product Feature:

1. high quality standard

2. full grids basement

3. good working function

4. Smoothly air recycling


Specification

Chamber Outside Dimension (mm):7005250×3400(L*W*H)

Chamber Inside dimension(mm): 6900×3900×2650(L*W*H)

Front door sizemm: 3000*2600(W*H)

Service door size(mm): 2000*800(W*H)


Cabin system:

1. Front door: 3 folded sheet metal formed door

2. Wall panels: 50mm EPS sandwich panel, steel sheet thickness: 0.426mm

3. Ceiling panel: Galvanized steel sheet

4. Basement: 300mm depth construction galvanized basement, full galvanized grids

5. Glass:  5mm tempered glass


Air make-up system

1. Air inlet fan system2 sets 4kw centrifugal fan, fan model: YDW-4.5L

2. Exhausted fan system1 set 7.5kw centrifugal fan, fan model: YDW-5.6S

3. Air inlet capacity:24000m3/h

4. Air inlet capacity:21000m3/h

5. Exhausted ducting: Four meters straight ducting for exhausted


Purification system

1. Pre filter : G3 grade

2. Ceiling filter: 600G filter EU5 / F5

3. Floor filter: Fiberglass filter

4. Exhausted filter: fiber glass and carbon filter\


Heating system:

1. Heat Ex-changer: SUS 304 180KW stainless heating ex-changer

2. Heating burner: Riello G20 diesel oil burner

3. heating productivity: 200000Kcal/h

4. Spray to baking switch: Pneumatic damper

5. Chimney ducting: 4m straight chimney and one chimney hood

6. Maximum temperature: Maximum 80℃


Lighting system:

1. Ceiling lighting: 10Units, each 4 *16.5W LED lamps.

2. Side lights: 8 Units, each 4 * 16.5W LED lamps.

3. Illumination: 1000LUX


Controlling system:

Spraying & baking switch, lighting switch, timer , temperature controlling switch, emergency stop, breakdown alarm, failure alarm, pressure gauge

Total Power: 18KW

Electrical Voltage360-415V,3Phase, 50Hz/200-240V 60Hz, 3Phase
