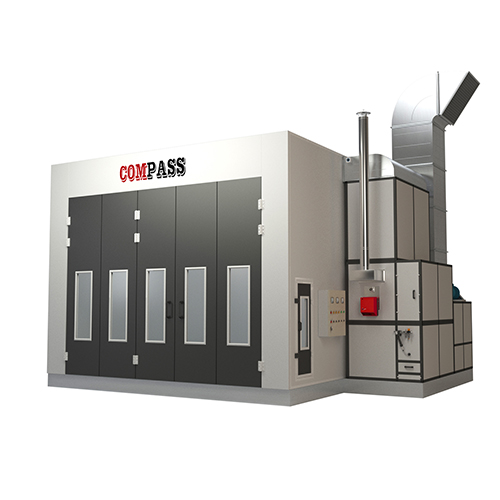

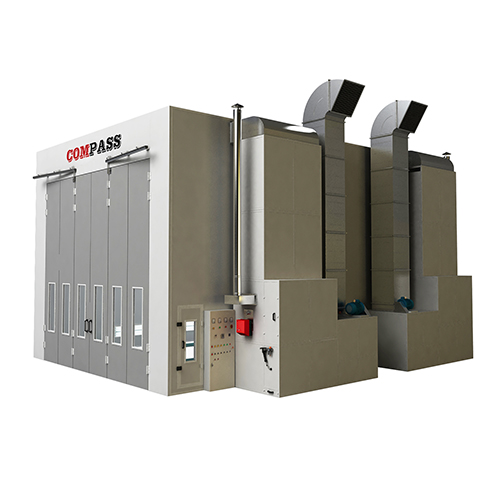

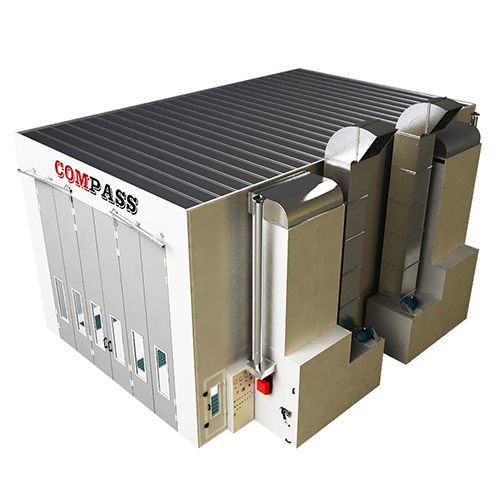

Non-standard industrial Spray Booth Model CP-12-75

  • Description: Non-standard industrial spray booth is designed by customers requirements and workpieces dimensions.
  • INQUIRY   EMAIL

Spray booth model: CP-12-75 industrial spray booth


Product Feature:

Non-standard spray booth is designed by customers requirements and workpeices dimensions;


Speicifications:

Chamber Inside dimension(mm): 12000×7500×6000(L*W*H)

Front door sizemm: 6000*5500(W*H)

Service door size(mm): 2000*800(W*H)


Cabin system:

1. Front door: 6 folded sheet metal formed door

2. Wall panels: 75mm EPS sandwich panel, steel sheet thickness: 0.476mm

3. Ceiling panel: Galvanized steel sheet

4. Basement: Dig two rows pit. Two rows galvanized grids.

5. Glass: 5mm tempered glass


Air make-up system

Two units ventilation system

1. Air inlet fan system2 sets 7.5kw centrifugal fan*2

1. Exhausted fan system1 set 11kw belt drive centrifugal fan*2

3. Air inlet capacity:40000m3/h*2

4. Air inlet capacity:40000m3/h*2

5. Exhausted ducting:six meters straight galvanized ducting and two 135 degrees elbows for each exhausted system


Purification system

1. Pre filter : G3 grade, pocket filter

2. Ceiling filter: 600G filter EU5 / F5

3. Floor filter: fiber glass filter

4. Exhausted filter:  pocket carbon filter


Heating system:

Two units heating system

1. Heat Ex-changer: SUS 304 180KW stainless heating ex-changer

2. Heating burner: two sets Riello RG5S diesel oil burner

3. heating productivity: 260000Kcal/h*2

4. Spray to baking switch: Pneumatic damper

5. Chimney ducting: 4m straight chimney and one chimney hood for each heating system

6. Maximum temperature: Maximum 80℃


Lighting system:

1. Ceiling lighting: 23Units, each 4 *16.5W LED lamps.

2. Side lights:  24Units, each 4 * 16.5W LED lamps.

3. Illumination: 1000LUX


Controlling system:

Spraying & baking switch, lighting switch, timer , temperature controlling switch, emergency stop, breakdown alarm, failure alarm, pressure gauge


Total Power: 65KW

Electrical Voltage360-415V,3Phase, 50Hz/200-240V 60Hz, 3Phase
