Scissors car lift

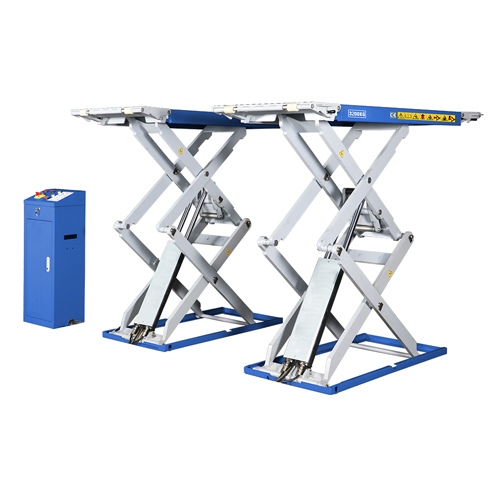

Low-profile super thin high rise scissors car lift Model CP-6435YM

Description: CP-6435 is one model scissors car lift of capacity of 3500kg, and high rise , low profile , no need make the floor foundation.
INQUIRY EMAIL

Product Model: CP-6435YM

Product Feature:

♦ Low profile: only 105mm, no pit request for installation.
♦ Dual-side draw out extension with SUV adaotors.
♦ Double scissors and high rise.
♦ Mechanical safety latch with automatic pneumatic engagement release.
♦ Drop speed control in case of hydraulic hose fracture.
♦ Hydraulic synchronism of pltforms with compensation valves by easy adjustment.
♦ Enhanced self-lubrication nylon-made slip shoes.
♦ Mechanical safety latch locking every 100mm.
♦ Foot protection alarm beeper at 200mm above the ground.
♦ Integrated control box with up, down, parking controls and dead-man 24V.

Product Specification:

Lifting Capacity	3500kg

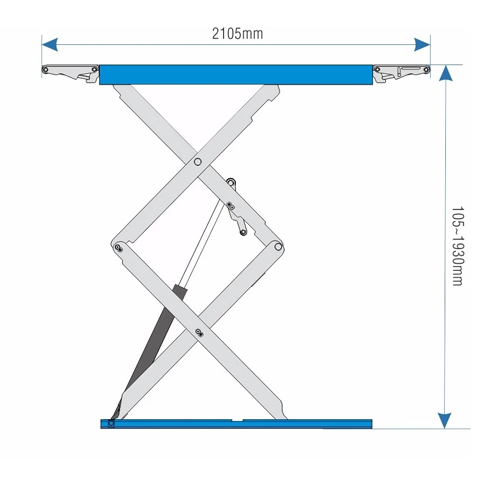

Min. Height	105mm
Max. Lifting Height	1930mm

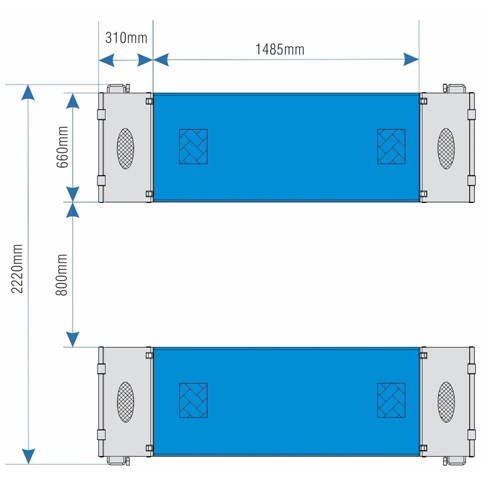

Platform Length	2105mm
Platform Width	2220mm
Distance between Platforms	800mm
Air Pressue	6~8kg/cm
Lifting/Lowering Time	55s/45s
Motor Power	2.2kW
Power Supply	380V/50Hz/3Ph or 220V/50Hz/1Ph
