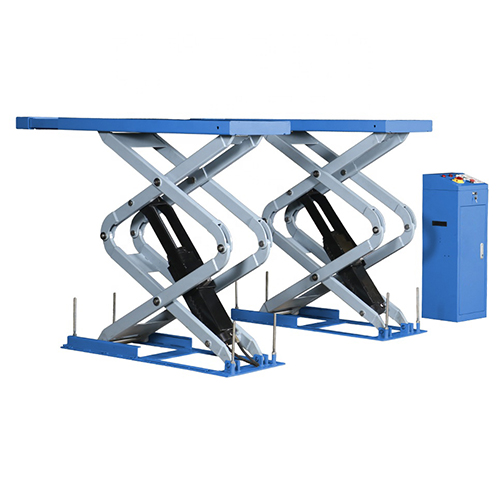

Product Model: CP-6530
Product Feature:
♦ Single side extendable platforms
♦ Mechanical locking teeth with automatic engagement and pneumatic release.
♦ Drop speed control in case of hydraulic hose fractue.
♦ Compensation valves for perfect platforms synchronization.
♦ Photocell device for level monitoring and for detection of any obstacles.
♦ Emergency stop button.
♦ Anti-crushing safety device which stops the lift at a height of 200mm above ground during lowering and requires a restart before continuing the descent, associated with an acoustic warning.
Model
CP-6530
Lifting Capacity
3,000kg
Min. Height
330mm
Max. Lifting Height
2,030mm
Platform Length
1,540~1,740mm
Platform Width
540mm
Distance between Platforms
800mm
Air Supply
6~8kg/m
Lifting/Lowering Time
55s/45s
Motor Power
2.2kW
Power Supply
380V/50Hz/3Ph or 220V/50Hz/1Ph
