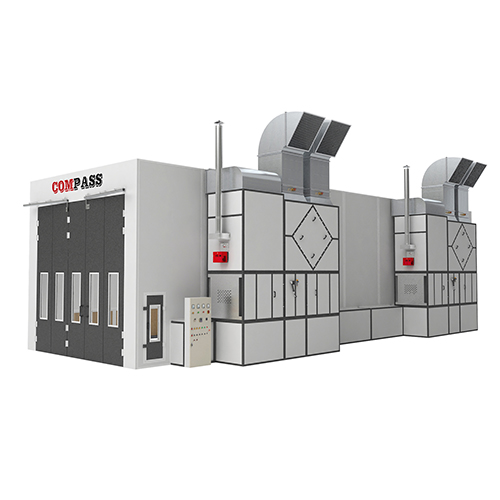

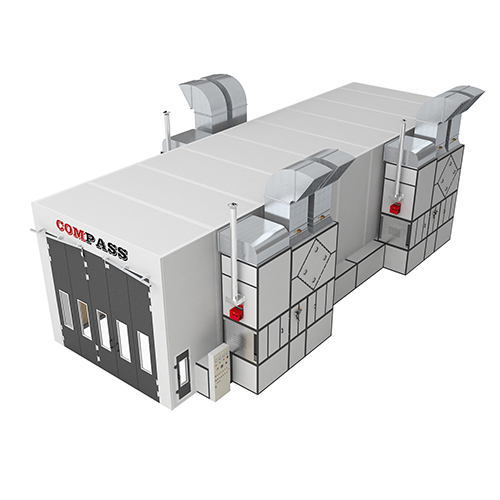

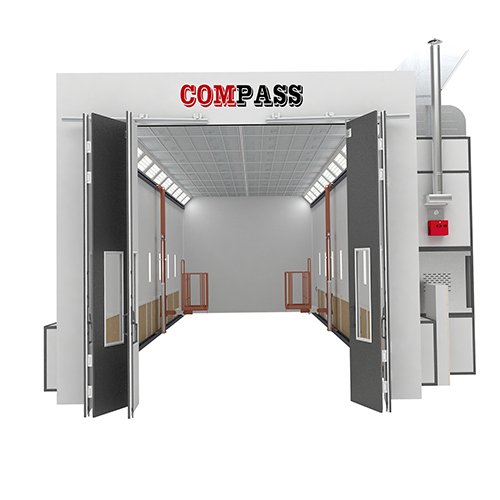

Bus and truck spray booth Model CP-20-6

Description: CP-20-6 is one high quality , meet the North Europe standard, with heating recovery system spray booth. it's suit for any kind os big trucks , longer buses and industrial goods need to me painted.
INQUIRY EMAIL

Spray booth model: CP-20-6

Prodcut feature:

1. side exhausted air

2. with heating recovery system

3. rockwool panel is suit for cold weather and keep warm.

Specification:

Outside Dimension (mm)	20125×9350×5600
Inside Dimension(mm)	23000×5000×5000
Front Door(mm)	5000×4700(W*H)
Service door(mm)	800×2000
Total Power	97kw
Cabin system
Front door	Four folded sheet metal door, double side with PU insulated
Wall panel	75mm rock-wool sandwich panel, steel sheet thickness: 0.6mm
Ceiling panel	Galvanized steel sheet
Basement	Cement floor by customer
Door glass	5mm tempered glass
Air make-up system
Air ventilation system quantity ：Three units
Air inlet fan system	3 sets 11kw turbo fan , fan model: DDF630
Exhausted fan system	3 sets 11kw turbo fan , fan model: DDF630
Air inlet capacity	105000m³/h
Exhuasted capacity	105000m³/h
Exhausted ducting	Four meters straight ducting and one 135 degrees elbow for each exhausted system
Purification system
Pre-filter	G3 grade
Ceiling filter	600G filter EU5 / F5
Floor filter	Fiberglass filter
Exhausted filter	Filber glass and carbon filter
Heating system
Heat Exchanger	SUS304 232KW stainless heating exchanger
Heating burner	Three sets Riello RG5S diesel oil burner(gas burner for option)
Heating productivity	780000Kcal/hour
Spray to baking switch	Pneumatic damper
Chimney ducting	4m straight chimney and one chimney hood for each air make-up system
heating temperature	Maximum 80℃
fuel consumption	10-16L/vehicle
Heating recovery system	SUS 304 meterial made for enginergy recovery and saving
Lighting system
Material	SUS 304 meterial made for enginergy recovery and saving
Ceiling lighting	30Units, each 4 *24W LED lamps.
Side lighting	36Units, each 4 * 24W LED lamps.
Illumination	1200LUX
Control system
Switch controlling	Spraying & baking switch, lighting switch, timer , temperature controlling switch, emergency stop, breakdown alarm, failure alarm, pressure gauge
