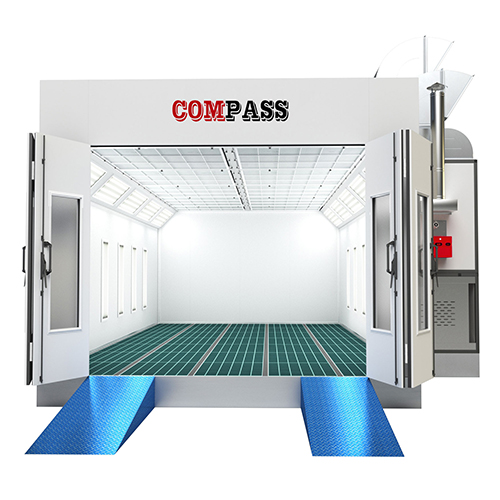

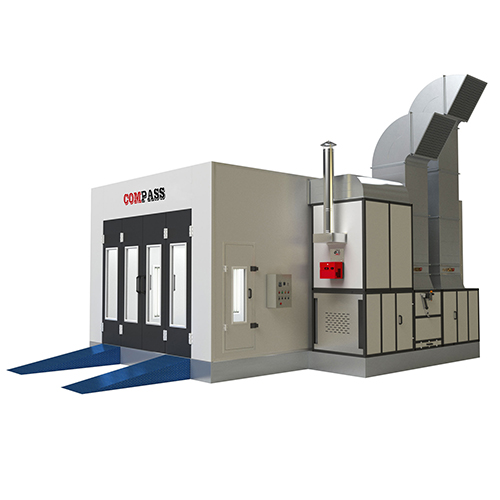

Pick-up van spray booth model CP-8-42

Product Model: CP-8-42 passenger car spray booth

Product feature:

1. it's designed for bigger cars, 4WD cars, pick-up vans.

2. one container can load two sets this spray booth.

3. it's full down-draft spray booth.

Specification:

Chamber Outside Dimension (mm):8150×5650×3400(L*W*H)

Chamber Inside dimension(mm): 8050×4200×2800(L*W*H)

Front door size（mm）: 3200*2600(W*H)

Service door size(mm): 2000*800(W*H)

Cabin system:

1. Front door: 4 folded sheet metal formed door

2. Wall panels: 50mm EPS sandwich panel, steel sheet thickness: 0.426mm

3. Ceiling panel: Galvanized steel sheet

4. Basement: 350mm depth construction galvanized basement, full galvanized grids

5. Glass:  5mm tempered glass

Air make-up system

1. Air inlet fan system：1 set 11kw turbo fan, with one manual damper

2. Exhausted fan system：1 set 11kw turbo fan, with one manual damper

3. Air inlet capacity:35000m3/h

4. 3. Air inlet capacity:35000m3/h

5. Exhausted ducting:six meters straight galvanized ducting and two 135 degrees elbows

Purification system

1. Pre filter : G3 grade, pocket filter

2. Ceiling filter: 600G filter EU5 / F5

3. Floor filter: fiber glass filter

4. Exhausted filter:  pocket carbon filter

Heating system:

1. Heat Ex-changer: SUS 304 180KW stainless heating ex-changer

2. Heating burner: Riello RG5S diesel oil burner

3. heating productivity: 260000Kcal/h

4. Spray to baking switch: Pneumatic damper

5. Chimney ducting: 4m straight chimney and one chimney hood

6. Maximum temperature: Maximum 80℃

Lighting system:

1. Ceiling lighting: 10Units, each 4 *16.5W LED lamps.

2. Side lights: 10 Units, each 4 * 16.5W LED lamps.

3. Illumination: 1000LUX

Controlling system:

Spraying & baking switch, lighting switch, timer , temperature controlling switch, emergency stop, breakdown alarm, failure alarm, pressure gauge

Total Power: 24KW

Electrical Voltage：360-415V,3Phase, 50Hz/200-240V 60Hz, 3Phase
