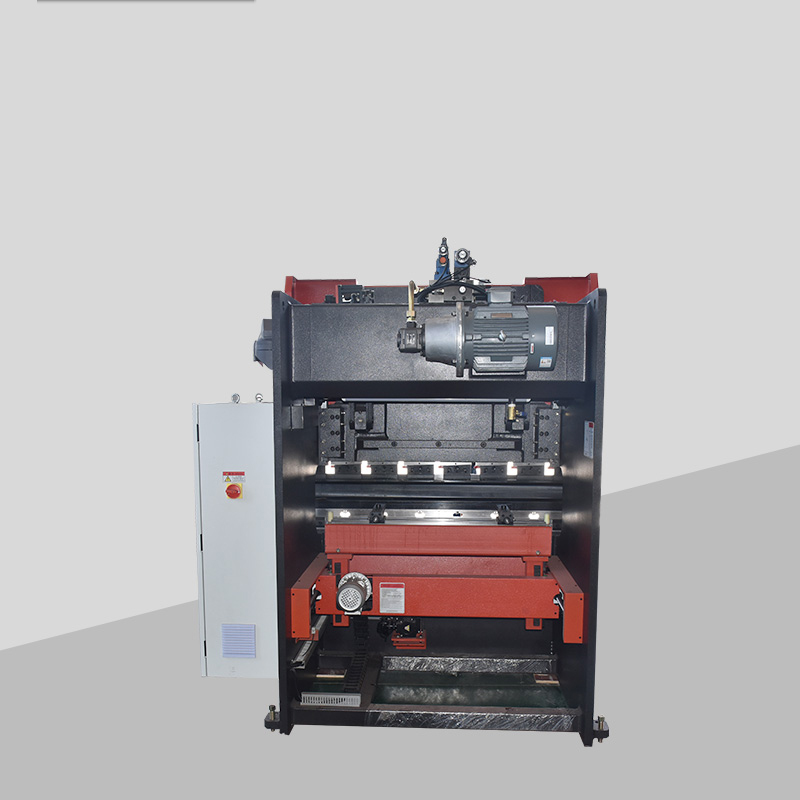

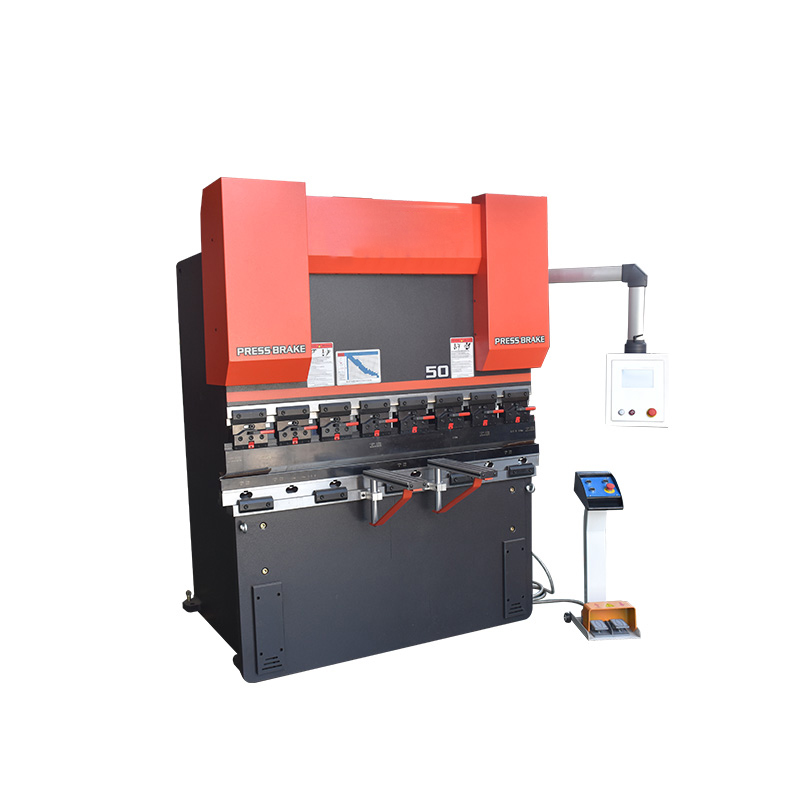

CNC metal plate press brake Model: WC67K4025

Product description:

The CNC press brake uses the mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.

Standard Feature:

(1)Hydraulic upper transmission, the cylinders at both ends of the machine tool are placed on the sliding block to directly drive the sliding work.

(2)It adopts mechanical block structure, which is stable and reliable.

(3)The stroke of the slider can be adjusted quickly by motor, fine-tuned manually, and the counter is displayed.

(4)It adopts all-steel welded structure with sufficient strength and rigidity.

(5)The slider synchronization mechanism adopts a torsion shaft for forced synchronization.

(6)Wedge-type deflection compensation mechanism to ensure higher bending.
